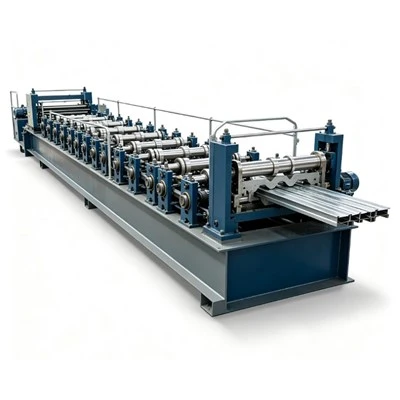

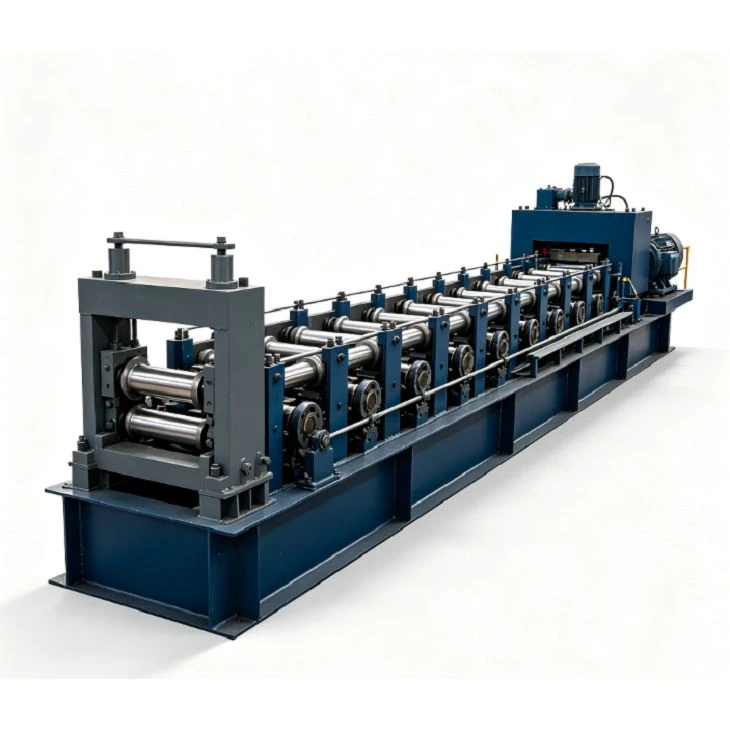

High Strength Purlin Roll Forming Machine

The High Strength C/Z Purlin Roll Forming Machine automatically transforms high-strength structural steel coils into precision C and Z purlins for modern steel building systems.
Designed for high-yield steel grades and thicker materials, the line integrates decoiling, leveling, guiding, programmable punching, progressive roll forming, hydraulic cutting, and finished-purlin discharge. Every line is custom-engineered based on profile geometry and material yield strength to ensure zero deformation and optimal stability.

Heavy-Forming Capacity: Handles up to 3.5 mm high-strength steel without frame twisting or roller deflection.
High Profile Precision: Engineered roll passes deliver strict section symmetry, straightness, and tight flange alignment.
Multi-Profile Flexibility: Rapid adjustment across common C and Z sizes reduces downtime between job runs.
Fully Integrated Line: Continuous decoiling, punching, forming, and cutting eliminate offline processing.

Produces load-bearing C and Z purlins for structural framing in:
Industrial Steel Structures: Roof purlins and wall girts for warehouses, factories, and logistics hubs.
Pre-Engineered Buildings: Primary and secondary framing components.
Commercial & Agricultural Infrastructure: Commercial centers, storage sheds, and farm facilities.
Solar Racking Systems: Custom-punched structural support channels.

Forming thicker and higher-strength steel introduces higher mechanical resistance and material springback. Our machine solves these challenges through target-built engineering:
Progressive Multi-Stage Forming: Distributes deformation across dedicated stations to prevent structural stress concentration and control springback.
Heavy-Duty Rigid Frame: Reinforced welded steel chassis minimizes deflection under peak forming loads.
Precision Machined Shafts: Solid 70–90 mm shafts ensure alignment and section symmetry during continuous operation.
Optimized Drive Capacity: Motor ratings are sized based on maximum material yield torque rather than speed alone.

Decoiler: Passive or motorized 3–5 ton expansion mandrel holding incoming coils securely.
Leveling & Guiding: Multi-roll leveler flattens coil set; adjustable side rollers keep the strip centered entering the forming mill.
Hydraulic Web/Flange Punching: Pre-punches single or repeated hole patterns (flange and web) controlled by the main PLC.
Progressive Roll Forming Section: High-precision alloy steel rolls (hardened and chrome-plated) gradually shape the profile.
C/Z Quick Changeover: Mechanical or automated adjustments allow efficient size switching across the 80–350 mm width range.
Hydraulic Post-Cutting: Clean, burr-free shearing at programmed lengths without changing blades for different section sizes.
Run-Out Table: Non-scratch discharge conveyor for manual collecting or integration with automatic stacking systems.

The centralized PLC automation system controls every stage of operation:
Multi-Length Batching: Program multiple cut lengths and hole distances within a single production batch.
Flexible Hole Patterns: Independent control for web, flange, and connection hole spacing.
Real-time Diagnostics: High-precision encoder feedback with emergency stop protection and line speed adjustment.

Mechanical Checks: Frame integrity, main shaft precision, roller dimensions, drive alignment, and gear mesh clearance.
Functional Checks: PLC sequence control, sensor responsiveness, hydraulic pressure stability, punching accuracy, cut length precision, and safety stops.
Trial Run: Test production using customer-specified raw material and profile drawings prior to final dispatch.
