Introduction

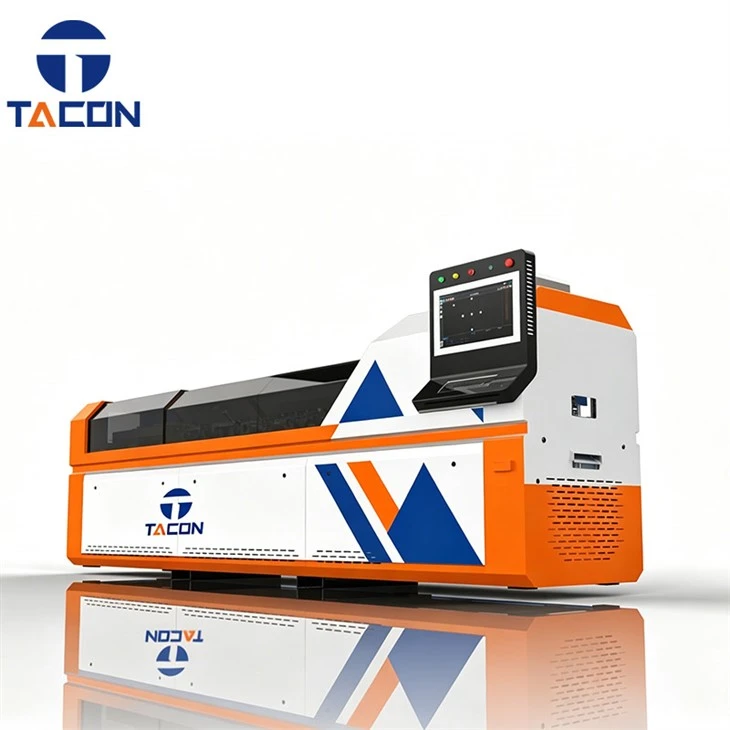

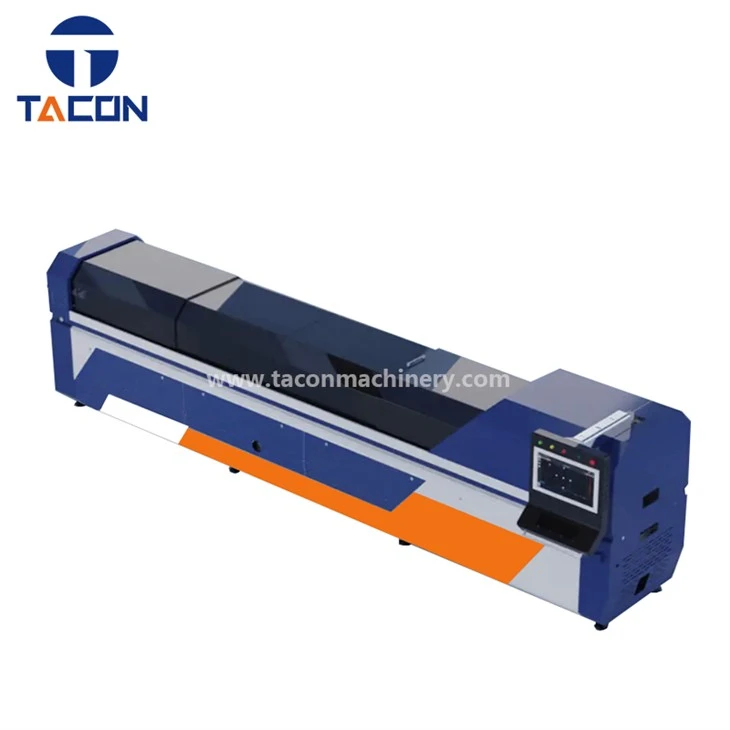

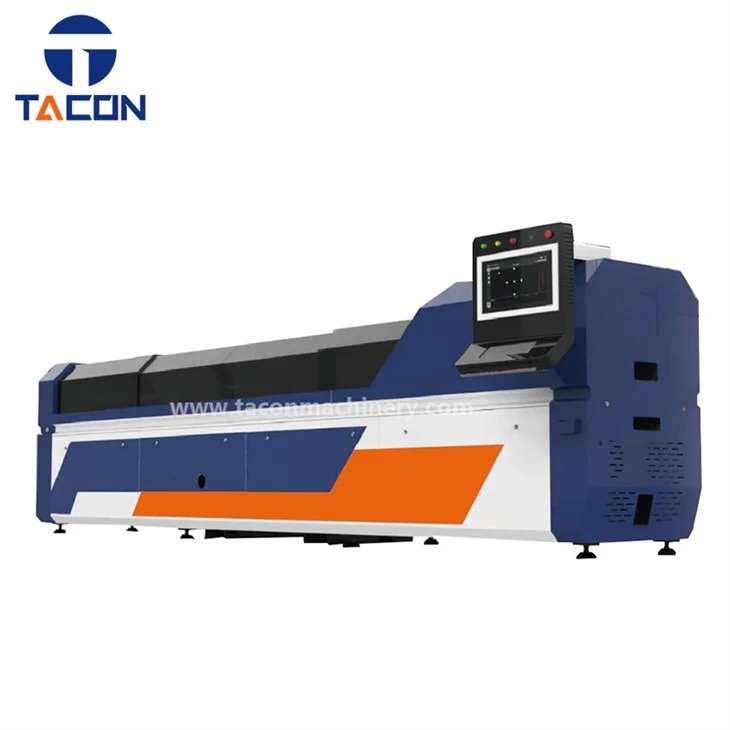

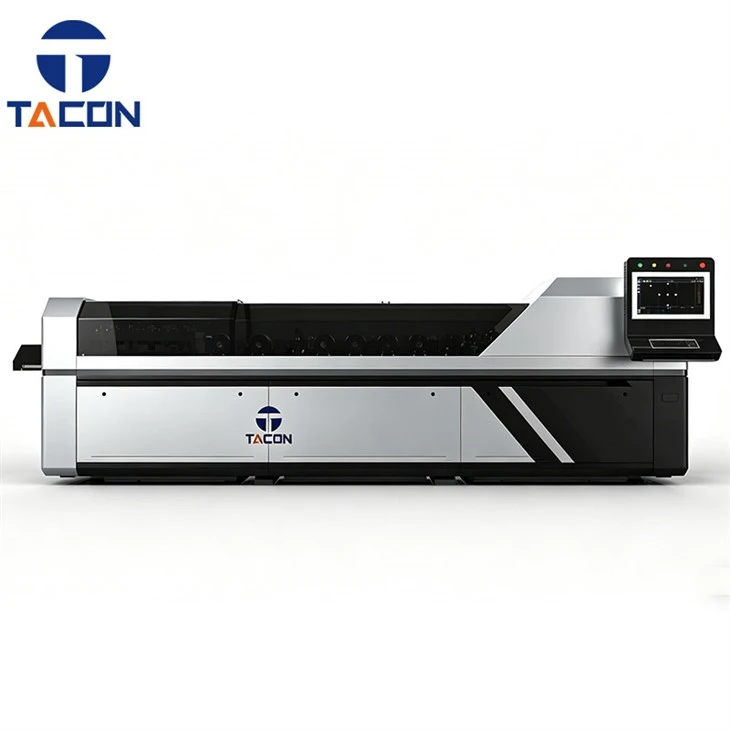

The Entry-Level LGS Framing Machine is designed to produce light gauge steel framing profiles for wall panels, trusses, and prefabricated steel structure applications with stable forming accuracy and automatic production control.
Parameters
| Item | Specification |
|---|---|
| Machine Type | Entry-Level LGS Framing Machine |
| Suitable Material | Galvanized steel coil, high-strength steel |
| Profile Capability | C profile, U profile, light steel framing sections |
| Steel Thickness Range | 0.6–1.2 mm |
| Production Speed | 25–30 m/min |
| Forming Stations | 10–14 stations |
| Roller Material | Cr12 steel, heat treated |
| Shaft Material | 45# steel |
| Main Motor Power | 5.5–7.5 kW |
| Hydraulic Power | 5.5–7.5 kW |
| Cutting Type | Hydraulic punching and cutting |
| Control System | PLC automatic control system |
| Voltage | 380V / 50Hz / 3 Phase (customizable) |
| Drive Type | Chain drive |
| Tolerance & Stability | Stable forming structure with accurate punching and cutting control |
| Custom Profile Design | Available according to customer drawings and framing requirements |
| Line Solution | Complete LGS framing production line available |
| Machine Structure | Welded steel frame structure |
| Machine Dimension | Customized |
| Machine Weight | Customized |
advantages
Flexible Profile Production
The machine supports multiple light gauge steel framing sizes and profile configurations, reducing equipment investment and improving production flexibility for residential construction projects.
Precise Punching & Forming
Equipped with precision punching and stable roll forming system, the machine ensures accurate profile dimensions and efficient processing for wall frames and truss components.
Durable
Built with high-strength components and integrated machine structure, the equipment provides stable continuous operation, low maintenance requirements, and reliable long-term performance.
Application Scenarios
The Entry-level LGS Framing Machine is specifically designed for manufacturing girders and trusses for low-rise residences and villas.
Profile Drawing
Machine Components
Flow chart
Decoiler→ Leveling Device→ Hydraulic Punching → Roll Forming Device→ Hydraulic punching→ online printer→ Hydraulic Cutting→ Product Support Frame
Product detail
FAQ
What profiles can this machine produce?
The machine is designed to produce light gauge steel framing profiles, including C profiles, U profiles, wall frames, and truss components.
What materials can the machine process?
It is suitable for processing galvanized steel coils and high-strength steel materials for LGS framing applications.
Does the machine support different profile sizes?
Yes, the machine can be customized for different profile widths, edge sizes, and thickness requirements according to project needs.
What is the production speed of the machine?
The production speed is typically 25–30 m/min depending on profile design and punching requirements.
Is the machine suitable for villa and residential construction?
Yes, the machine is widely used for light gauge steel framing systems in residential villas and low-rise building projects.
Can customized punching designs be supported?
Yes, punching patterns and profile configurations can be customized based on customer drawings and construction requirements.
